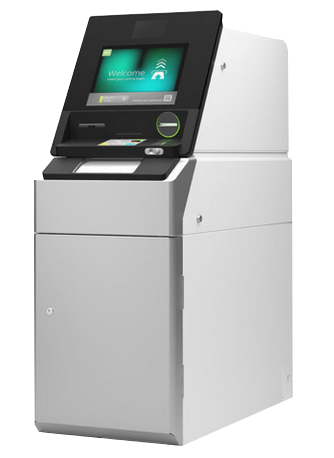

NCR SS 83

The NCR SelfServ™ 83 is an interior freestanding pocket cash recycler with a contemporary look and feel and multi-touch capability. It is ideally suited for any inside location either within branch or off-premise.

Designed to perform with twice the reliability of other cash recycling solutions, the SelfServ 83 fulfils transactions with ease and convenience. The easy to use pocket interface is prominently positioned at the front of the ATM, delivering large bunch note capacity and improved visibility for consumer transactions. Advanced servicing capabilities ensure optimal performance and greater availability levels are achieved.

Driven by NCR’s Media Handling 2.0 technology, the SelfServ 83 incorporates a new Bunch Recycling Module (BRM) delivering unrivalled performance, serviceability and security.

Product Dimensions

Front Access

HEIGHT: 52.36” (1,330mm)

WIDTH: 18.9” (480mm) Cable entry point allow 10mm

DEPTH: Front access 40.24” (1,022mm) Rear access 43.7” (1,110mm)

WEIGHT: CEN 1 safe 1,322.8lbs (600kg)

Customer Interface

Display - 15” LCD multi-touch, or FDK, optional privacy filter

Keyboard - EPP (PCI compliant), polycarbonate or stainless steel

Card Reader – Smart Dip, Track 2 or Track 1,2,3 IMCRW with CROPF and smart Integrated Media Entry and Exit Indicators (MEEI)

Audio - Optional high quality public audio and/or sound jack with volume control

Barcode Reader - 2D Barcode supports both 1D and 2D documents

Recycling Module

Bunch Recycling Module (BRM) with up to 4 recycling cassettes and 1 configurable deposit cassette

ECB Recycling framework compliant Accepts up to 300 notes and dispenses up to 210 notes* Secure and fully auditable service access Multi sensor foreign object detect

Printers

Receipt Printer :80mm 203dpi graphics thermal printer.

Options:retract and capture and 2ST (two-sided thermal printing)

Journal Printer:80mm 203dpi graphics thermal printer (E-Journal available as default)

Security

USB Protection and Parts Validation. Options - Fraudulent Device Inhibitor, Enhanced Card Drive, Skimming Protection Solution (SPS) (IMCRW or DIP), Solidcore Suite for APTRA, Camera based pocket monitoring system.

Uninterruptible Power Supply (UPS)

Safes - CEN I, CEN III, CEN III ExGas, CEN IV ExGas

Trusted Platform Module

Servicing

Front or rear access

7” LCD Control Operator Panel (Rear access only)

Operating Platform

Intel® i3 and i5 processor options

4GB or 8GB

250GB hard drive

SSD hard drive

Operating Platform

Windows® 7

APTRA software suite

Additional Features

Biometrics ready

Contactless ready
